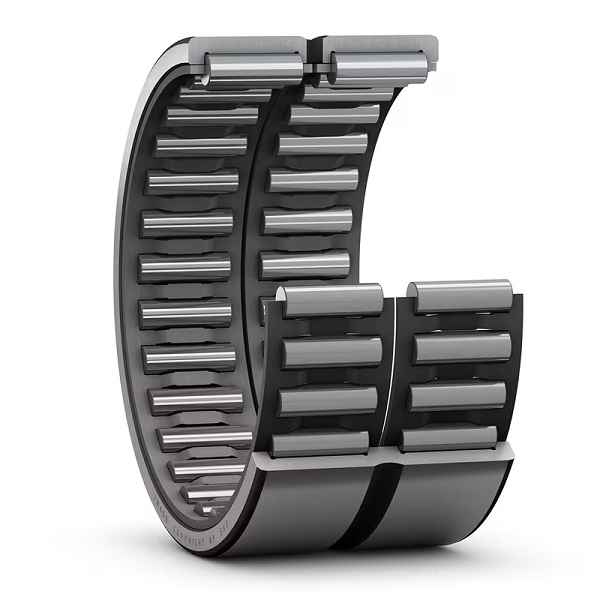

RNA 6914 SKF

Double row needle roller bearing, with no inner ring

Dimensions
  • 80.00 mm ID
  • 100.00 mm OD
  • 54.00 mm Width
  • RNA(69) Series with machined rings, flanges and no inner ring
  • Unsealed

Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

  • High radial load carrying capacity
  • High stiffness
  • Low cross-sectional height
  • Accommodate axial displacement in both directions
SKF
RRP $625.91

All Prices are Tax Inclusive


Specification
Item Type NEEDLE ROLLER BEARING
Metric/Inch Metric
Series RNA
Additional Features With Flanges and No Inner Ring
ID: Metric 80.000
ID: Inch 3.150
OD: Metric 100.000
OD: Inch 3.937
Width: mm 54.000
Width: Inch 2.126
Seal Type Unsealed
Cage Steel
Clearance Standard
NRB Type Heavy Duty Needle Roller Bearings
Weight (Kg) 0.913
UNSPSC Code 31171512
UNSPSC Description Needle bearings
Unit Of Measure EA
Downloads
Technical Specifications
